Entexs Midi

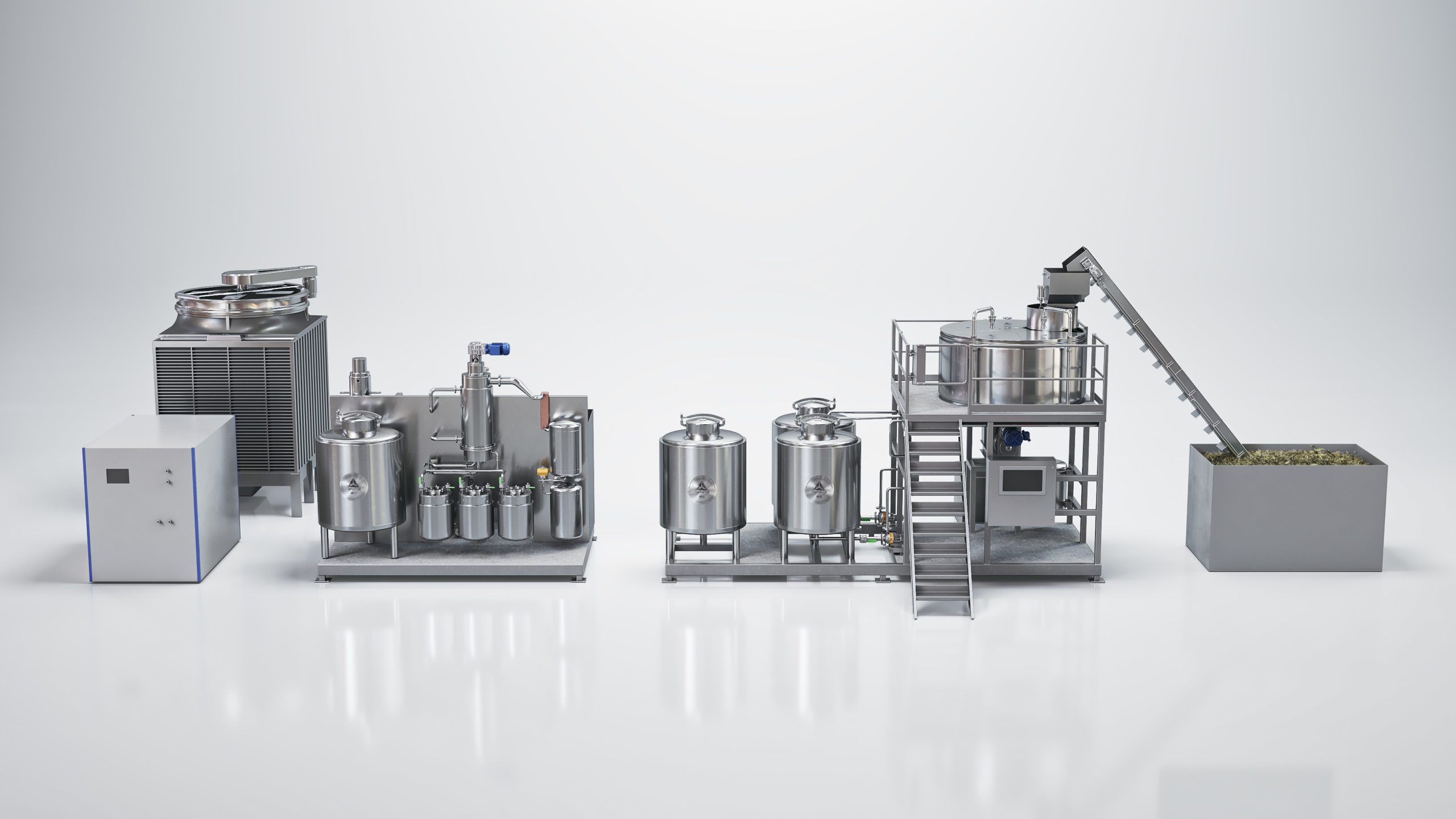

The ENTEXS MIDI is a complete, turn-key, closed loop, cold ethanol extraction system capable of continuously processing biomass to true full-spectrum crude and/or distillate. The continuous feed carousel system, cascade chillers, and multi-stage wiped film evaporation go from bulk biomass to high quality crude without any operator intervention. This patent-pending system provides unmatched, truly automated hands-free technology.
ENTEXS midi is intended for clients with more than 4500 pounds of biomass per day.
BATCH RATE
THROUGHPUT CAPACITY: 4500 LBS PER DAY
RUNS CONTINUOUSLY TO ACHIEVE: UP TO 188 LB/HR
COOLING METHOD: CASCADE CHILLER
TEMPERATURE RANGE: -80° FOR EXTRACTION TO +200° C FOR DISTILLATE PRODUCTION
RUNS CONTINUOUSLY TO ACHIEVE: UP TO 188 LB/HR
COOLING METHOD: CASCADE CHILLER
TEMPERATURE RANGE: -80° FOR EXTRACTION TO +200° C FOR DISTILLATE PRODUCTION
MECHANICAL SPECIFICATIONS
FOOTPRINT: 40’W X 8’D X 11’H (TOTAL SYSTEM FOOTPRINT)
TEMPERATURE RATING: -80° TO +200° C PRESSURE RATING FULL VACUUM TO 100 PSIG SOLVENT HOLDING VOLUME300 GALLONS HMI INTERFACE SCREEN SIZE: 24 INCONTROLLER: FPGA BASED INDUSTRIAL CONTROLLER WITH WATCHDOG FOR CONTROL AND PROCESS MONITORING
TEMPERATURE RATING: -80° TO +200° C PRESSURE RATING FULL VACUUM TO 100 PSIG SOLVENT HOLDING VOLUME300 GALLONS HMI INTERFACE SCREEN SIZE: 24 INCONTROLLER: FPGA BASED INDUSTRIAL CONTROLLER WITH WATCHDOG FOR CONTROL AND PROCESS MONITORING
ELECTRICAL SPECIFICATIONS
VOLTAGE: 480 V – SUPPLY VOLTAGE
AMP REQUIREMENT: 275 A – TOTAL SYSTEM AMP DRAW
POWER: 230 KW TOTAL
ELECTRICAL RATINGS: CLASS 1 DIV 2 – MINIMUM ELECTRICAL RATING
