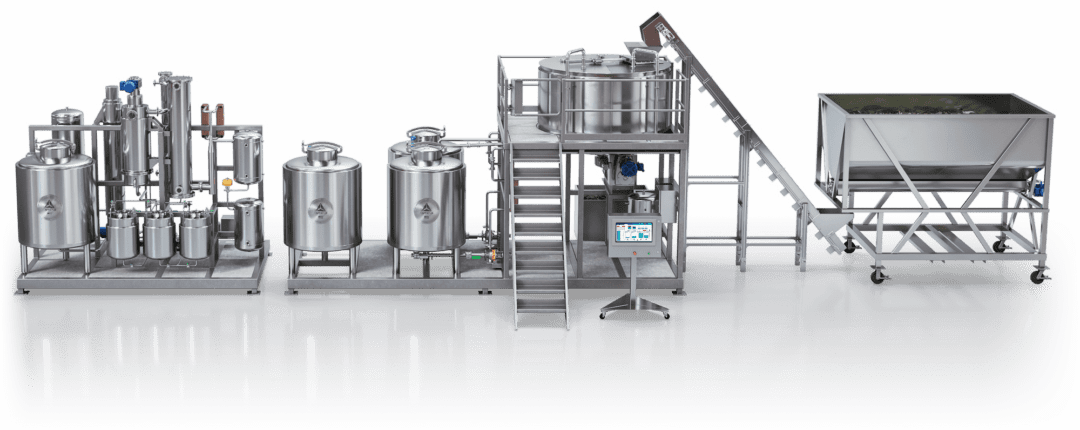

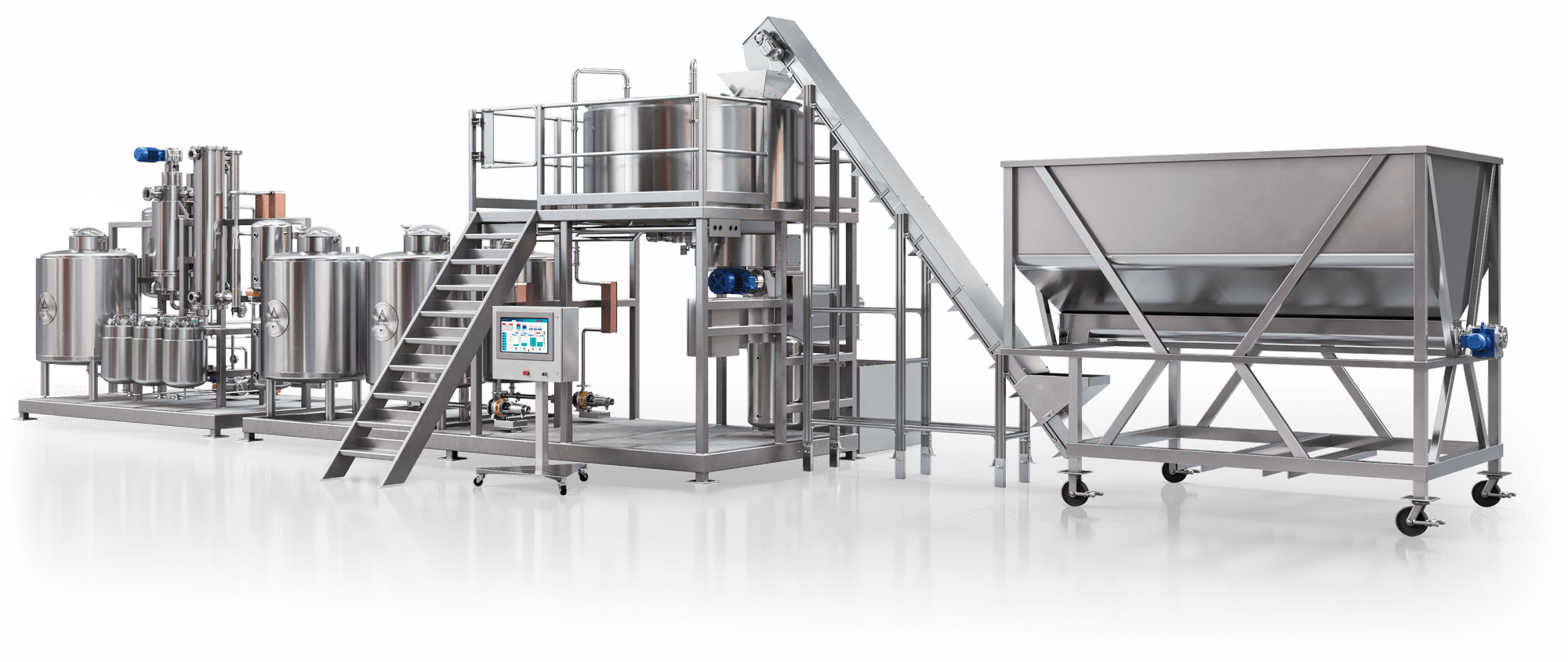

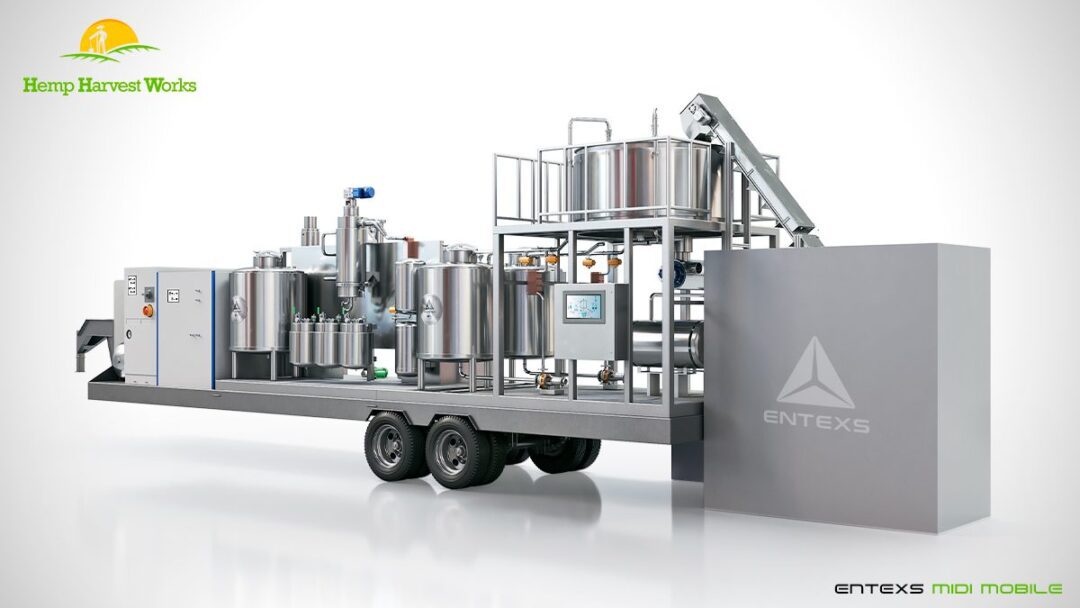

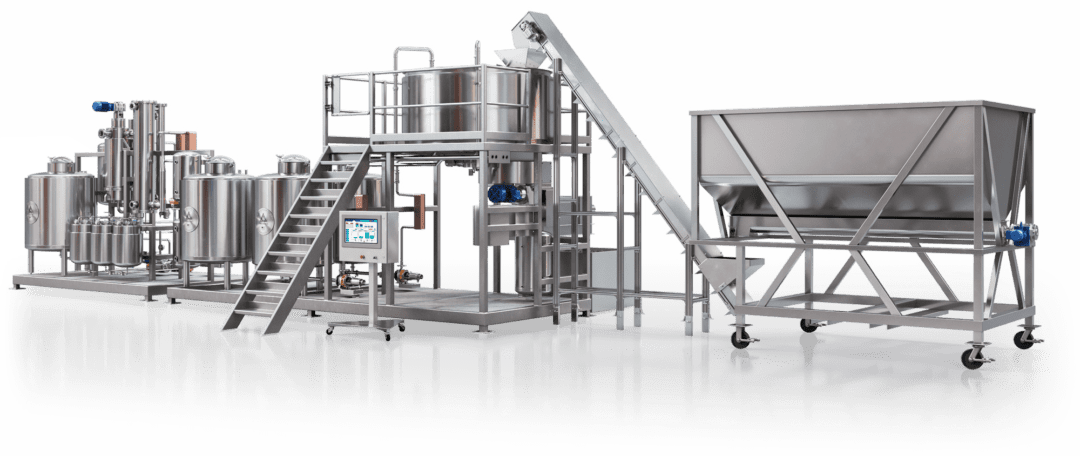

The ENTEXS MIDI MOBILE system is our standard Midi extraction system, which processes 4500 pounds per day, configured for quick deployment to farms and offsite extraction locations. MIDI MOBILE is configured on a mobile platform and uses off-grid utilities to power the extraction system. By utilizing a mobile platform, the logistics of biomass transport are eliminated and a true onsite farm processing solution is available.
No touch process throughout the extraction process eliminates potential reduced efficiencies, compromised quality, increased labor and safety risks.
Bypass this extensive and time-consuming step by controlling and maintaining solvent temperature during the extraction process below -50 °C.
Load the system once per day instead of once every 10 minutes. Fully continuous from biomass input to final product.
From your phone or computer, real-time and trend monitoring of extraction process can be leveraged to optimize efficiency.
Closed Loop System
Solvent temperature control maintains precise extraction temperature. Combined with our automation, complete control over final product states can be configured and run.
Extraction carousel with user configured routines and flow control from biomass to full spectrum crude, distillate and/or isolate
THROUGHPUT CAPACITY: 4,500 LBS PER 24 HOURS
RUNS CONTINUOUSLY TO ACHIEVE: 4,500 LBS IN 24 HOURS
COOLING METHOD: CASCADE CHILLER*LN CAN BE USED TO SUPPLEMENT AND AMPLIFY COOLING
TEMPERATURE RANGE: -100° FOR EXTRACTION TO 200° FOR DISTILLATE PRODUCTION
FOOTPRINT: 40’W X 8’D X 11’H (TOTAL SYSTEM FOOTPRINT)
TEMPERATURE RATING: -80° TO +200° C
PRESSURE RATING: FULL VACUUM TO 100 PSIG
SOLVENT HOLDING VOLUME: 300 GALLONS
HMI INTERFACE SCREEN SIZE: 24 IN
CONTROLLER: FPGA BASED INDUSTRIAL CONTROLLER WITH WATCHDOG FOR CONTROL AND PROCESS MONITORING
VOLTAGE: 480 V - SUPPLY VOLTAGE
AMP REQUIREMENT: 275 A - TOTAL SYSTEM AMP DRAW
POWER: 230 KW TOTAL POWER REQUIREMENT
ELECTRICAL RATINGS: CLASS 1 DIV 2 - MINIMUM ELECTRICAL RATING
